เครื่องมือวัดอุณหภูมิและความชื้น
ผลิตภัณฑ์ Ebro ประเทศเยอรมัน

TTX 200 Core ThermometerThermocouple Type T

Technical data

Measuring range -30 °C ... +199,9 °C
Accuracy +25 °C ±0,5 °C, -30 °C ...+100 °C
Resolution 0,1 °C ±1 % for the remaining measurement range
Operating Temperature -20 °C ... +60 °C
Storage temperature -30 °C ... +70 °C
Measured variables Temperature
IP Rating IP65
Battery CR 2450, replaceable
Battery lifetime Typically 100 hours of uninterrupted use
Dimensions 127 x 60 x 16 mm without probe
Weight aprox. 100 g
Certificate Factory calibration certificate

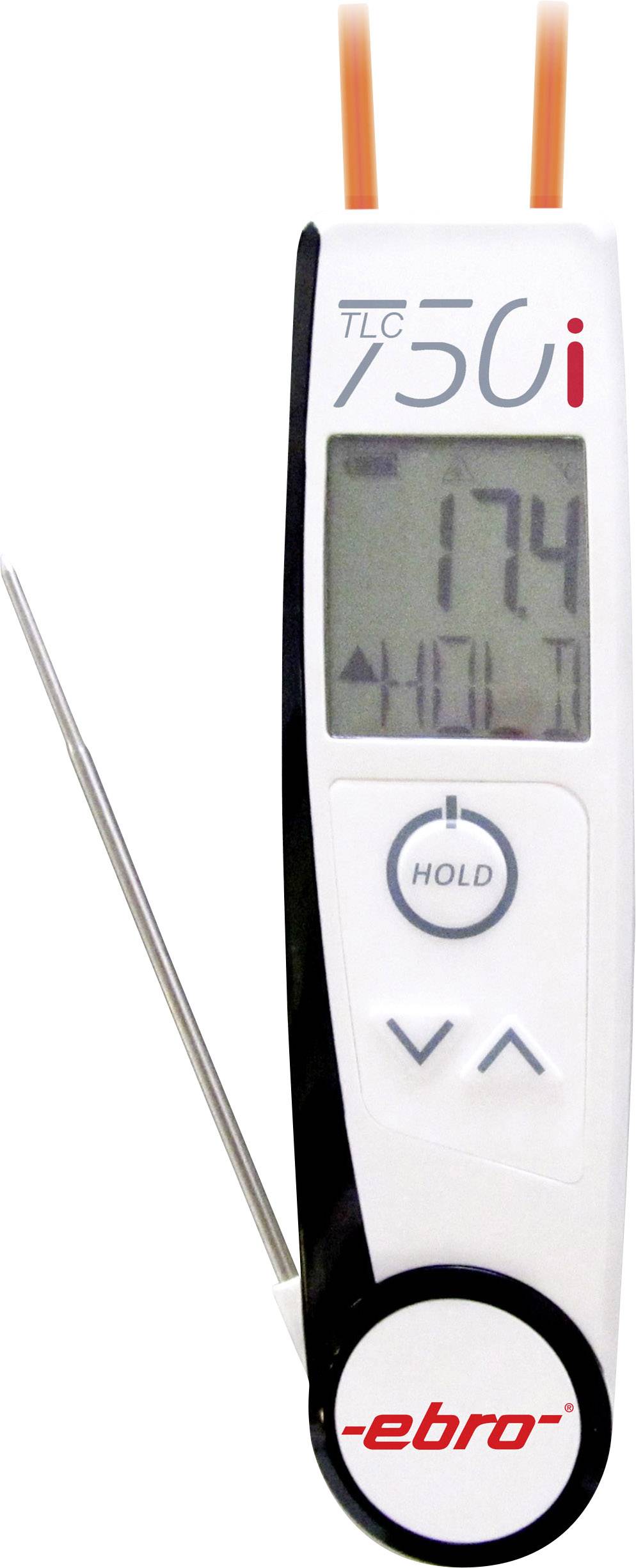

TLC 750i Dual-Infrared / Fold-Back-Thermometer

Technical data

Measuring range -50 °C...+250 °C
Accuracy Infrarot: ±4 °C to -50 °C...-30,1 °C   ±2,5 °C to -30 °C...-18,1 °C  ±1,5 °C to -18 °C...-0,1 °C   ±1,0 °C to 0 °C...+65 °C   ±2,0 °C or 2% to +65 °C...+250 °C:   Contact feeler ±0,5 °C to -30 °C...+99 °C ±1 °C (1%)   the larger value applies
Resolution 0,1 °C
Operating Temperature -25 °C...+50 °C
Storage temperature -30 °C...+70 °C
Measured variables Temperature
IP Rating IP65
Battery 2 x AAA (Micro)
Battery lifetime 10 h when used continuously
Dimensions 169,5 x 44 x 23 mm without probe
Weight aprox. 140 g
Certificate Factory calibration certificate

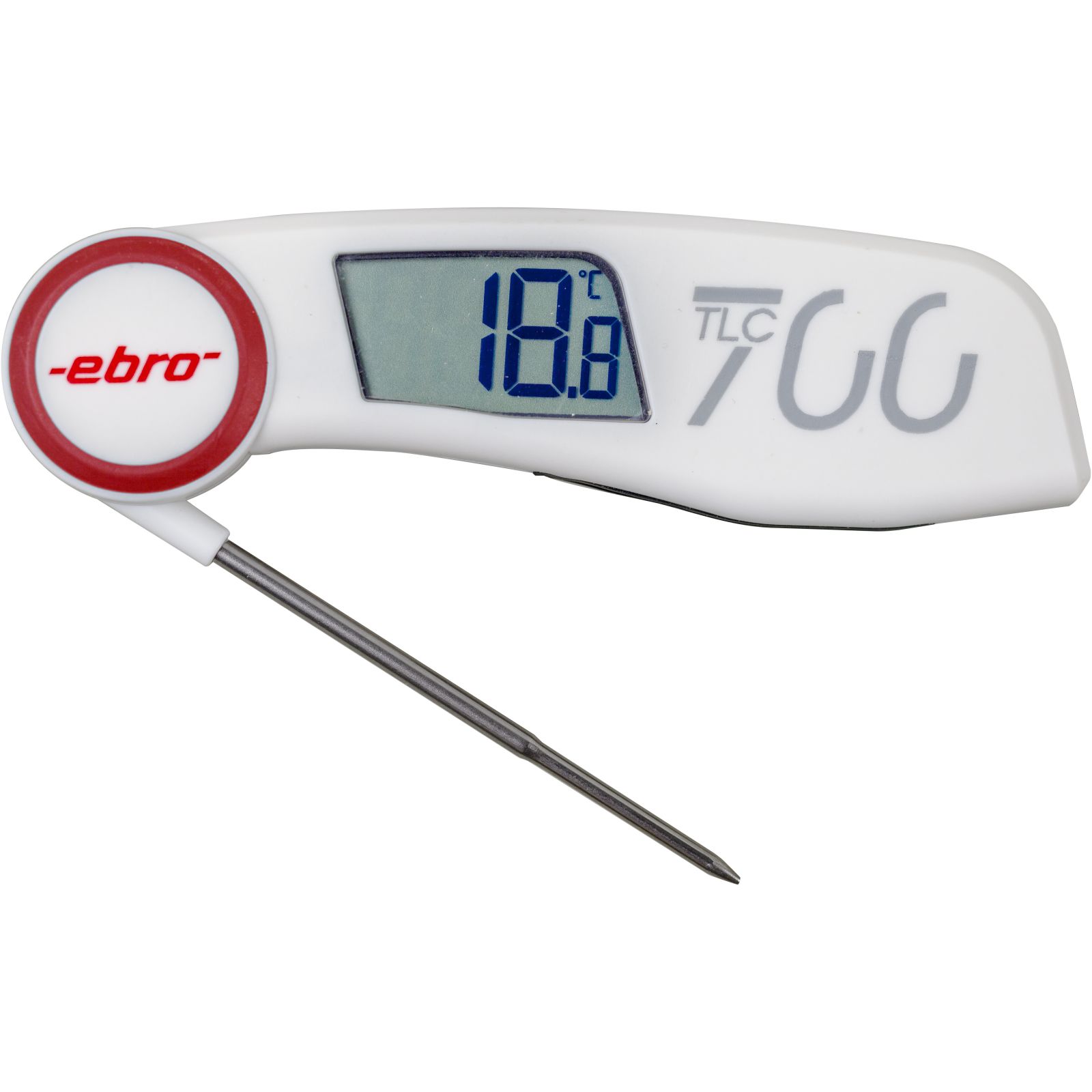

TLC 700 Folding Thermometer

Technical data

Measuring range -30 °C...+220 °C
Accuracy ± 0.5 °C to -30 °C...+100 °C ± 1.0%
  for the remaining measurement range
Resolution 0.1 °C
Operating Temperature 0°...+50 °C
Measured variables Temperature
IP Rating IP 65
Battery Lithium button cell 3 V, Typ CR 2032
Dimensions 118 x 33 x 15 mm
Weight aprox. 41. 2 g
Certificate Factory calibration certificate

TFI 260  Basic Infrared Thermometer

Technical data

Measuring range -60 °C ... +550 °C
D:S 12:1
Emissivity factor 0,95 fixed
Accuracy ±2 °C + 0.05 °C per °C below 0 °C (at -60 °C … 0 °C)
  ±2 °C (at 0 °C … +15 °C) ±1.5 °C (at +15 °C … +35 °C)
  ±2 °C or 2%, larger value is applicable (at +35 °C … +550 °C)
Resolution 0,1 °C
Measured variables Temperature
IP Rating IP20
Battery 2 x AAA (Micro)
Battery lifetime 7 hours of continuous use
Dimensions 115 x 162 x 40 mm
Weight Approximately 179 g with battery
Certificate Factory calibration certificate

TFI 550 Infrared Thermometer with NiCr-Ni connection

Technical data

Measuring range -60 °C...+550 °C
D:S 30:1
Emissivity factor 0.1...1.0
Accuracy ± 2 °C ,-18 °C...+23 °C ± 1% of the meas. value
  ± 1 °C (the higher value applies) +23 °C...+510 °C
Resolution 0.1 °C at -9.9 °C to 199.9 °C, otherwise 1 °C
Operating Temperature 0 °C...+50 °C
Storage temperature -20 °C...+50 °C
Measured variables temperature
IP Rating IP20
Battery Type AAA, 1,5V
Battery lifetime typically 140 hours
Dimensions 46 x 121 x 195 mm
Weight approx. 180 g
Certificate Factory calibration certificate

TFI 650 Infrared Thermometer with NiCr-Ni connection and wide measurement range

Technical data

Measuring range -60 °C...+1500 °C
D:S 50:1
Emissivity factor 0.1...1.0
Accuracy ± 2 % v. MW oder ±2 °C the higher value applies
Resolution 0.1 °C
Operating Temperature 0 °C...+50 °C
Storage temperature - 20 °C...+ 65 °C
Probe NiCr-Ni-sensor measurement
IP Rating IP20
Battery Typ AAA, 1,5V
Battery lifetime  approx. 140 h.
Dimensions 47 x 197 x 203.3 mm
Weight approx. 385 g
Certificate Factory calibration certificate

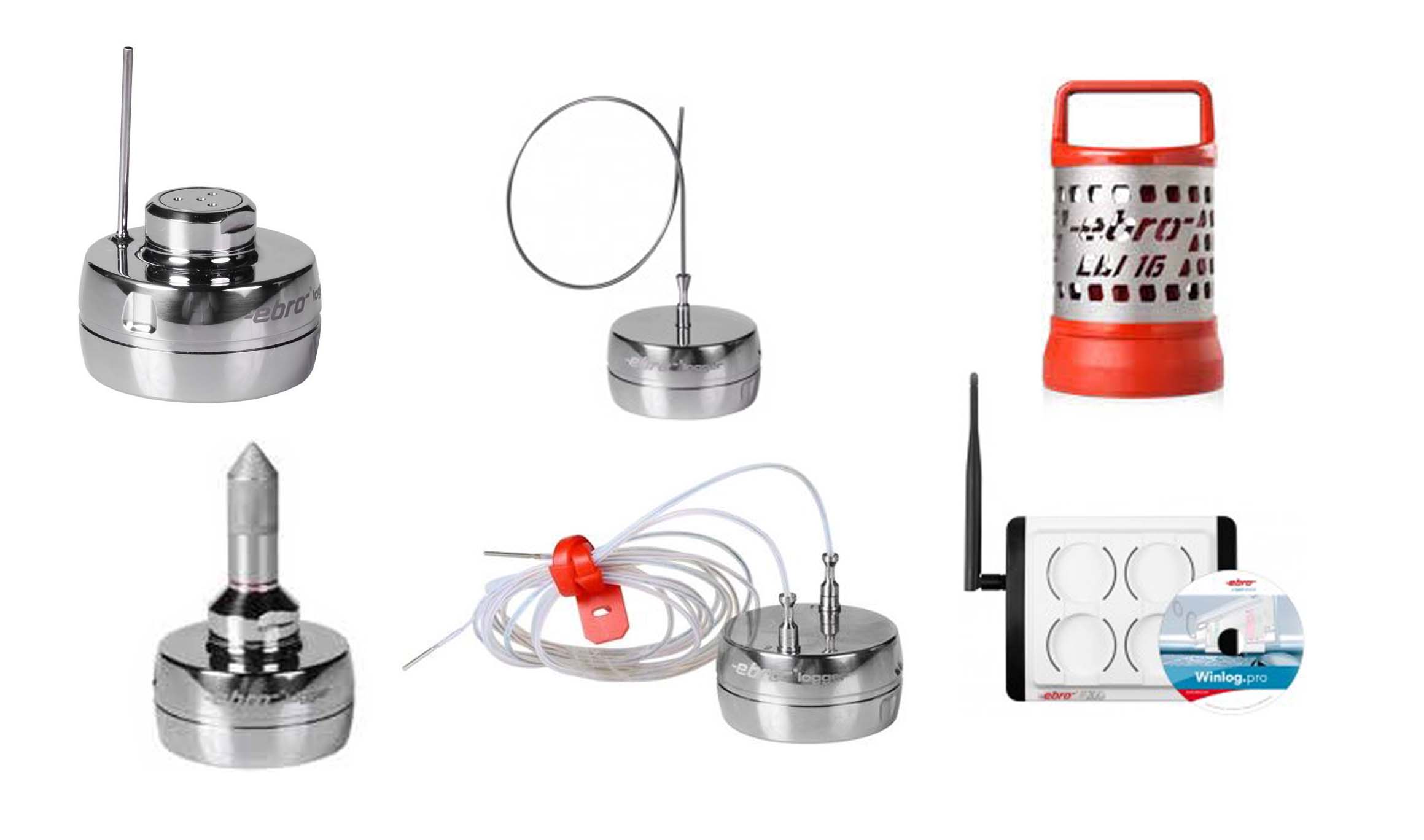

Data Logger Hight Temperture

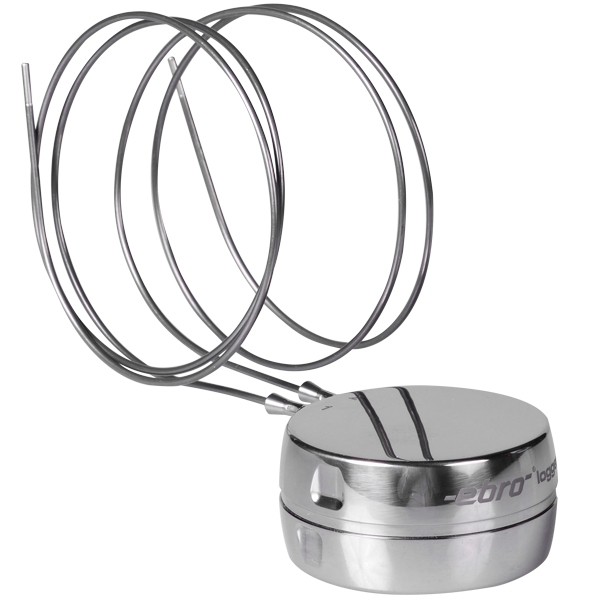

1.  EBI 12-T421  Temperature Data Logger

Technical data

Measuring range
-200 °C ... +400 °C
Resolution
0,01 °C
Operating Temperature
-90 °C … +150 °C
Storage temperature
0 °C ... +125 °C
Memory
2 x 50,000 measurement values
Sensor
Pt 1,000, class A
Sample Rate
250 msec ... 24 h
Measured variables
Temperature
IP Rating
IP68
Battery lifetime
Lithium battery (3,6 V), user replaceable
Dimensions
(Ø x H) 48 mm x 24 mm
Weight
approx. 110 g
Certificate
Factory calibration certificate

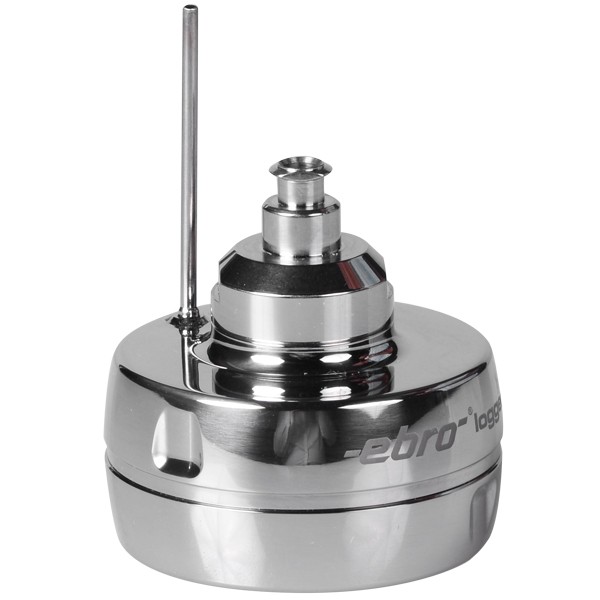

2.  Temperature / Pressure Data Logger

Technical data

Measuring range 0 °C … +150 °C 1 mbar … 4.000 mbar
Accuracy ±0,05 °C (+120 °C ... +140 °C) ±0,1 °C
  (for the remaining measuring range)
  ±10 mbar (50…150 mbar) (2.050…2.250 mbar)
  (3.000…3.250 mbar)
  ±15 mbar (for the remaining measuring range)
Resolution Temperature 0,01 °C / pressure 1 mbar
Memory 2 x 33.400 measurement values
Sensor Pt 1.000.class A
Sample Rate 250 ms ... 24 h
Measured variables Temperature, pressure
IP Rating IP68
Battery Lithium 3.6 V battery exchangeable
Dimensions (Ø x H) 48 mm x 32 mm
Weight approx. 110 g
Certificate Factory calibration certificate

3.  EBI 12-TH100-EX  Temperature / Humidity data Logger

Technical data

Measuring range Temperature: -20 °C ... +85 °C   Humidity: 0 % rF… 100 % rF
Accuracy ± 0,1 °C ± 2 % rF
Resolution 0,01 °C 0,1 % rF
Storage temperature -20 °C ... +70 °C
Memory 2 x 50.000 measurement values
Probe 1 external temperature channel (PT 1000),   1 humidity channel (capacitive);   combined sensor replaceable
Measured variables Temperature, humidity
IP Rating IP52
Battery 3.6 V lithium battery exchangeable
Dimensions ø 48 mm x 70 mm
Weight aprox. 120 g
Certificate Factory calibration certificate

 Cooking Oil Tester

FOM 330-4 Food Oil Monitor Set

Technical data

Measuring range +50 °C...200 °C 0%...40%
Accuracy ± 1 °C ± 2 %
Resolution 1 °C 0,5 %
Measured variables temperature, TPM (total polar materials)
IP Rating IP67
Battery 3 V Lithium
Battery lifetime up to 3 years
Dimensions 304 x 54 x 22 mm
Weight approx. 200 g
Certificate Factory calibration certificate
