เครื่องวัดความหวาน / เครื่องวัดความเค็ม
(Refractometer / Salinity Refractometer)
"ATAGO" Refractometer เครื่องมือวัดความหวาน หรือเครื่องวัดวัดดัชนีหักเหของแสงในสารละลาย เป็นเครื่องที่ถูกออกแบบมาเพื่อหาค่าดัชนีหักเหของสารละลาย ซึ่งสามารถหาค่าได้จากสารละลายได้หลายประเภท เช่น น้ำตาล เกลือ แร่ธาตุ น้ำผึ้ง น้ำผลไม้ ซอส น้ำทะเล โปรตีน เป็นต้น

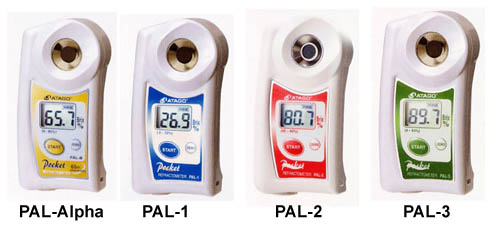

Pocket Refractometers "ATAGO"
เครื่องวัดความหวานแบบดิจิตอล
Specifications :
| Model | PAL-Alpha | PAL-1 | PAL-2 | PAL-3 |
| Meas.range | Brix 0.0 to 85.0% | Brix 0.0 to 53.0% | Brix 45.0 to 93.0% | Brix 0.0 to 93.0% |
| Resolution | Brix 0.1% | |||
| Meas.accuracy | Brix ± 0.2% | Brix ± 0.1% | ||
| Meas.temp. | 10 to 75oC (Automatic Temperature Compensation) | |||
| Ambient temp. | 10 to 40oC | |||
| Power supply | 2 x AAA Batteries | |||
| International protection class | IP65 Water resistant | |||
Hand-Held Refractometers "ATAGO"
เครื่องวัดความหวานแบบพกพา
แบบไม่ชดเชยอุณหภูมิ (Non A.T.C) เป็น รุ่น Master - M
แบบชดเชยอุณหภูมิและกันน้ำได้ (A.T.C & Water Resistant) เป็น รุ่น Master - alpha

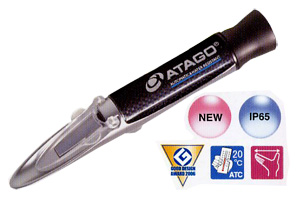

MASTER-Alpha series "ATAGO"
เครื่องวัดความหวานแบบพกพา Master-Alpha Series
Refractometer (Automatic Temperature Compensation & IP65 Water Resistant)
MASTER-Alpha Series hand-held refractometers with are the first to be equipped with Automatic Temperature Compensation and Water Resistant (IP65) at the same time. Whole instrument can be rinsed off with running water hygiene aspect and humidity protection aspect are improved with NEW feature. 7 different measurement ranges are available.
Specifications :
| Model | Master-53alpha | Master-20alpha |
| Scale range | Brix 0.0 to 53.0% | Brix 0.0 to 20.0% |
| Minimum scale | Brix 0.5% | Brix 0.1% |
| Accuracy | ± 0.5% (10 to 30oC) | ± 0.2% (10 to 30oC) |
| Repeatability | Brix ± 0.25% | Brix ± 0.1% |
| International Protection Class | IP65 | IP65 |

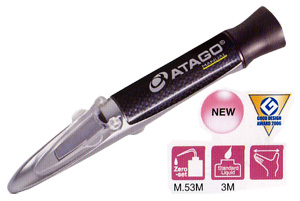

เครื่องวัดความหวานแบบพกพา MASTER-M series "ATAGO"
Master-M Series are good alternative choice when Water Resistant feature is not a priority, and Temperature Compensation is carried out manually. Equipped with great features and specifications except the Automatic Temperature Compensation and the Water Resistant features.
Specifications :
| Model | Master-53M | Master-20M |
| Scale range | Brix 0.0 to 53.0% | Brix 0.0 to 20.0% |
| Minimum scale | Brix 0.5% | Brix 0.1% |

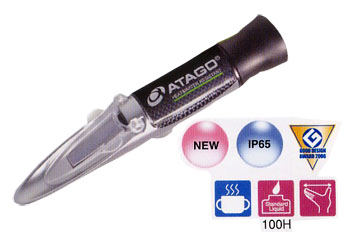

เครื่องวัดความหวานแบบพกพา MASTER-H series
Refractometer (Automatic Temperature Compensation, Water Resistant & Heat Resistant)
Master-H Series are the Heat Resistant models of the Master-Alpha series. Designed for measuring high-temperature samples during cooking or boiling process at production sites. Corrosion resistant tempered glass prism are adopted to provide an extended service life.
Specifications :
| Model | Master-50H | Master-80H | Master-93H | Master-100H |
| Scale range | Brix 0.0 to 50.0% | Brix 30.0 to 80.0% | Brix 45.0 to 93.0% | Brix 60.0 to 100.0% |
| Minimum scale | Brix 0.5% | Brix 0.5% | Brix 0.5% | Brix 0.5% |
| Accuracy | Brix ± 0.5% | Brix ± 0.5% | Brix ± 0.5% | Brix ± 0.5% |
| Repeatability | Brix ± 0.25% | Brix ± 0.25% | Brix ± 0.25% | Brix ± 0.25% |
|
International
Protection Class
|
IP65 | IP65 | IP65 | IP65 |
เครื่องวัดปริมาณความเค็ม (Salinity Refractometer)

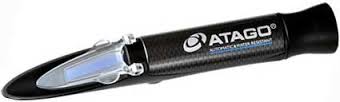

Master-S/Mill alpha seies [Salinity Refractometer (sea water) IP65 Water Resistant & Automatic Temperature Compensation]
เครื่องวัดปริมาณความเค็มแบบพกพา Master-S/MillM [Salinity Refractometer (sea water)]
This instrument measures the salinity and specific gravity of sea water, and utilizes a new materia that is durable against salty samples. The salinity of seawater is displayed in parts per mille (0/00 ). The Master-S/Mill alpha is rated IP65 (water resistant) and features Automatic Temperature Compensation (ATC).
Specifications :
| Model | Master-S/MillM | |
| Scale range | Salinity 0.0 to 100.0 0/00 Specific gravity 1.000 to 1.070 (Automatic Temperature Compensation) |
Salinity 0.0 to 100.0 0/00 Specific gravity 1.000 to 1.070 |
| Minimum scale | Salinity 1 0/00 Specific gravity 0.001 |
Salinity 1 0/00 Specific gravity 0.001 |
| Accuracy | Salinity ± 2% Specific gravity ± 0.001 (10 to 30OC) |
- |
| International protection class | IP65 Water Resistant (except eyepiece) | - |
Master-S10alpha series Salinity Refractometers (IP65 Water Resistant & Automatic Temperature Compensation)
เครื่องวัดปริมาณความเค็มแบบพกพา Master-S10M series Salinity Refractometers
This instrument is designed to control the concentration of saltwater, such as in cooking or rinsing seafood, and utilizes a new material that is durable against salt and acidic samples. The Master-S10alpha is rated IP65 (water resistant), features Automatic Temperature Compensation (ATC), and has a measurement range of 0.0 to 10.0%.
Specifications :
| Model | Master-S10alpha | Master-S10M |
| Scale range | Sodium chloride 0.0 to 10.0% | Sodium chloride 0.0 to 10.0% |
| Minimum scale | 0.1% | 0.1% |
| Accuracy | ± 0.2% (10 to 30OC) | - |
| Internation protection class | IP65 Water Resistant | - |

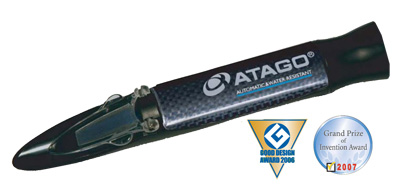

MASTER-S28alpha
Salinity Refractometers (Automatic Temperature Compensation & Water Resistant)
เครื่องวัดปริมาณความเค็มแบบพกพา MASTER-S28M (Salinity Refractometers)
Units used for measuring the concentration of salt in water.
For example : Preparation and Storage of seafood, Brining solutions & Concentration of salt used in cooking.
Specifications :
| Model | Master-S28alpha | Master-S28M |
| Scale range | 0.0 to 28.0% Sodium chloride | |
| Minimum scale | 0.2% Sodium chloride | |
| Accuracy | ± 0.2% (10 to 30oC) | - |
