Hotplate / Hotplate Stirrer / Overhead Stirrer/
Homogenizer / Shakers / Shakers Incubator
ยี่ห้อ IKA / Germany
เครื่องให้ความร้อน (Hot Plate)
รุ่น C-MAG HP 4 / HP 7 / HP 10
ยี่ห้อ IKA
C-MAG HP 4 / C-MAG HP 7 / C-MAG HP 10 IKATHERM
Hotplate made of glass ceramics which offers excellent chemical resistance.
- Fixed safety circuit of 550oC
- Hot Top indicator >> hot surface warning to prevent burns!
- Precise temperature setting via digital display (LED)
- Digital error code display
- Elevated control panel to protect against leaking liquids
- Connecting a contact themometer ETS-D5 , enables precise temperature control
| Technical Data | C-MAG HP 4 | C-MAG HP 7 | C-MAG HP 10 |
| Temperature range | 50-500oC | 50-500oC | 50-500oC |
| Heat output | 250 W | 1,000 W | 1,500 W |
| Sensor for temperature in medium | NO | ETS-D5 | ETS-D5 |
| Fixed safety circuit | 550oC | 550oC | 550oC |
| Material set up plate | glass ceramics | glass ceramics | glass ceramics |
| Dimensions set up plate | 100 x 100 mm | 180 x 180 mm | 260 x 260 mm |
| Dimension (W x D x H) | 150 x 260 x 105 mm | 220 x 330 x 105 mm | 300 x 415 x 105 mm |
| Weight | 3 kg | 5 kg | 6 kg |
| Protection class acc.to DIN EN 60529 | IP 21 | IP 21 | IP 21 |
เครื่องกวนสารชนิดให้ความร้อน (Magnetic Stirrer with Heating)
รุ่น RH basic 1 / RH basic 2
ยี่ห้อ IKA

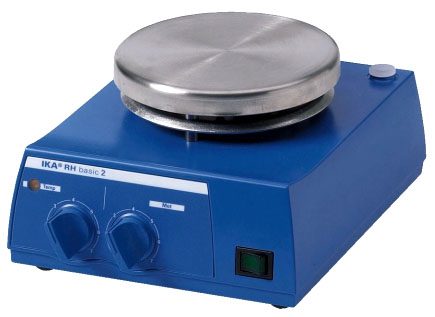

RH basic 1 IKAMAG
RH basic 2 IKAMAG
Economic magnetic stirrer with stainless steel heating plate
- Fixed safety circuit 400OC
- Soft-start stirring motor
| Technical Data | RH basic 1 | RH basic 2 |
| Stirring quantity (H2O) | 5 litre | 10 litre |
| Speed range | 150-1,500 rpm | 100-2,000 rpm |
| Temperature range | RT-320oC | RT-320oC |
| Heat output | 400 W | 400 W |
| Fixed safety circuit | 400oC | 400oC |
| Material set up plate | stainless steel | stainless steel |
| Dimensions set up plate | Ø 125 mm | Ø 125 mm |
| Dimension (W x D x H) | 168 x 220 x 105 mm | 168 x 220 x 105 mm |
| Weight | 2.4 kg | 2.4 kg |
| Protection class acc.to DIN EN 60529 | IP 21 | IP 21 |
เครื่องกวนสารชนิดให้ความร้อน (Magnetic Stirrer with Heating)
รุ่น C-MAG HS 4 / HS 7 / HS 10
ยี่ห้อ IKA

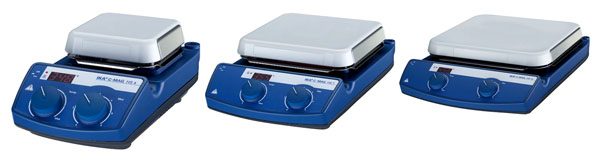

C-MAG HS 4 / C-MAG HS 7 / C-MAG HS 10 IKAMAG
Magnetic stirrers with heating and glass ceramics heating plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 5 litre, 10 litre, 15 litre (H2O)
- Fixed safety circit of 550oC
- Hot Top indicator >> hot surface warning to prevent burns!
- Precise temperature setting via digital display (LED)
- Digital error code display
- Elevated control panel to protect against leaking liquids
- Connecting a contact thermometer ETS-D5, enables precise temperature control
| Technical Data | C-MAG HS 4 | C-MAG HS 7 | C-MAG HS 10 |
| Stirring quantity (H2O) | 5 litre | 10 litre | 15 litre |
| Speed range | 100-1,500 rpm | 100-1,500 rpm | 100-1,500 rpm |
| Temperature range | 50-500oC | 50-500oC | 50-500oC |
| Heat output | 250 W | 1,000 W | 1,500 W |
| Sensor for temperature in medium | NO | ETS-D5 | ETS-D5 |
| Fixed safety circuit | 550oC | 550oC | 550oC |
| Material set up plate | glass ceramics | glass ceramics | glass ceramics |
| Dimensions set up plate | 100 x 100 mm | 180 x 180 mm | 260 x 260 mm |
| Dimension (W x D x H) | 150 x 260 x 105 mm | 220 x 330 x 105 mm | 300 x 415 x 105 mm |
| Weight | 3 kg | 5 kg | 6 kg |
| Protection class acc.to DIN EN 60529 | IP 21 | IP 21 | IP 21 |
Electronic Accessories รุ่น ETS-5D
ยี่ห้อ IKA

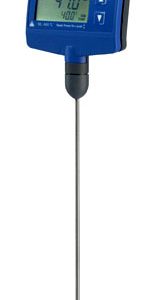

Electronic Contact Thermometers
ETS-D5
Ensures perfect temperature control without overshooting the set temperature, even in the case of quick heating. With optimized PID control and RESET function, incl. stainless steel sensor H 62.51. For all magnetic stirrers with contact thermometer bushing according to DIN 12878, class 2
| Temperature | ETS-D5 |
| Temp. measuring range | -50 to 450oC |
| Resolution | 0.1 k |
| Meas. accuracy | ± 0.2 k + sensor tolerance PT 1000 DIN IEC 751 class A |
| Setting accuracy | 0.1 k |
| Control deviation | ± 0.5 k |
| Supply voltage | 8-16 VDC |
| Power consumption | 10 mA (at 9 V) |
| Max. ON time | 100 % |
| Plug | 6 pin DIN 45322 |
| Connection | DIN 12878 class 2 |
| Dimensions (W x D x H) | 82 x 22 x 83 mm (without sensor) |
| Weight | 0.2 kg |
| Protection class acc. to DIN EN 60529 | IP 54 |
เครื่องกวนสารชนิดไม่ให้ความร้อน (Magnetic Stirrer without heating)

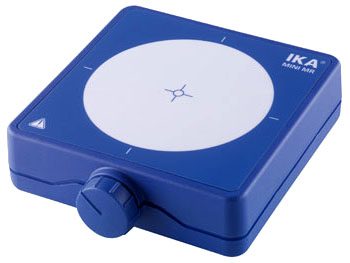

รุ่น Mini MR Standard
ยี่ห้อ IKA
Mini MR standard IKAMAG
The improvement of the magnetic stirrer.
New : For stirring quantities up to 1.000 ml (H2O)
New : Infinitely variable speed from 0-2,500 rpm
- White set-up plate suitable for observing color reactions
| Technical Data | Mini MR |
| Stirring quantity (H2O) | 1 litre |
| Speed range | 0-2,500 rpm |
| Material set up plate | polyester |
| Dimensions set up plate | 115 x 115 mm |
| Dimension (W x D x H) | 117 x 127 x 45 mm |
| Weight | 0.25 kg |
| Protection class acc.to DIN EN 60529 | IP 42 |
เครื่องกวนสารชนิดไม่ให้ความร้อน (Magnetic Stirrer without heating)
รุ่น Color squid white
ยี่ห้อ IKA

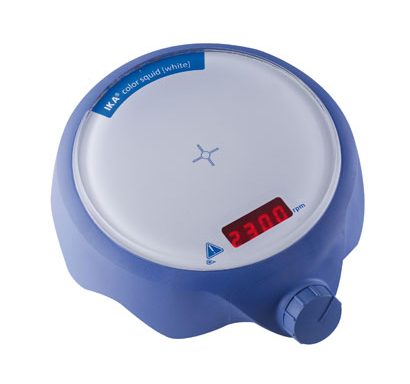

Color Squid IKAMAG
The improved magnetic stirrers now in new designs.
New : Digital speed display (LED)
New : Electronically controlled motor for more capacity
New : Higher speed range from 0-2,500 rpm
New : Max. stirring quantity 1 litre
- Outstanding chemical resistance due to glass top and synthetic bottom made of TPC-ET
- Recyclable materials
| Technical Data | Big squid IKAMAG |
| Stirring quantity (H2O) | 1 litre |
| Speed range | 0-2,500 rpm |
| Material set up plate | glass |
| Dimension set up plate | Ø 115 mm |
| Dimensions (W x D x H) | 145 x 160 x 45 mm |
| Weight | 0.55 kg |
| Protection class acc. to DIN EN 60529 | IP 54 |
เครื่องกวนสารชนิดไม่ให้ความร้อน (Magnetic Stirrer without heating)

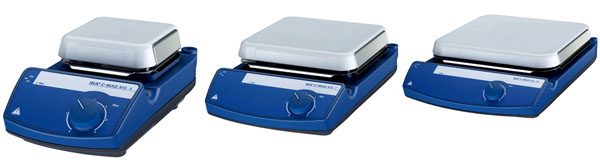

รุ่น C-MAG MS 4 / C-MAG MS 7 / C-MAG MS 10
ยี่ห้อ by IKA
C-MAG MS 4 / C-MAG MS 7/ C-MAG MS 10 IKAMAG
Magnetic Stirrers without heating. With glass ceramics set-up plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 5 litre, 10 litre, 15 litre (H2O)
- Elevated control panel to protect against leaking liquids
| Technical Data | C-MAG MS 4 | C-MAG MS 7 | C-MAG MS 10 |
| Stirring quantity (H2O) | 5 litre | 10 litre | 15 litre |
| Speed range | 100-1,500 rpm | 100-1,500 rpm | 100-1,500 rpm |
| Material set up plate | glass ceramics | glass ceramics | glass ceramics |
| Dimension set up plate | 100 x 100 mm | 180 x 180 mm | 260 x 260 mm |
| Dimensions (W x D x H) | 150 x 260 x 105 mm | 220 x 330 x 105 mm | 300 x 415 x105 mm |
| Weight | 3 kg | 5 kg | 6 kg |
| Protection class acc. to DIN EN 60529 | IP 21 | IP 21 | IP 21 |

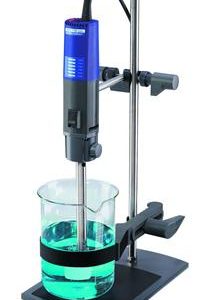

เครื่องกวนสารชนิดใบพัดกวนสาร (Overhead Stirrer)
รุ่น RW 20 digital ยี่ห้อ IKA

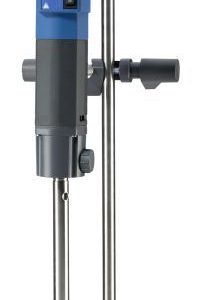

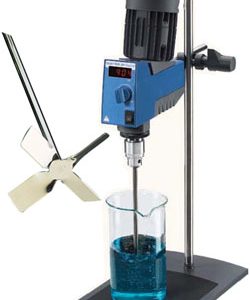

RW 20 digital
Overhead stirrer with digital display. Technical improvements on the trusted RW 20 series designs.
- With digital display
- Robust, slim line, ergonomic design
- With constant power-drive
- Two speed ranges for universal use from 60-2,000 rpm
- Push-through agitator shafts (only when stationary)
| Technical Data | RW 20 digital |
| Stirring quantity (H2O) | 20 litre |
| Max. viscosity | 10,000 mPas |
| Speed range I (per 50 Hz) | 60-500 rpm |
| Speed range II (per 50 Hz) | 240-2,000 rpm |
| Speed display | digital |
| Dimensions (W x D x H) | 88 x 212 x 294 mm |
| Weight | 3.1 kg |
| Protection class acc. to DIN EN 60529 | IP 20 |
เครื่องผสมสารด้วยความเร็วสูง (Dispersers)
รุ่น T 18 Digital
ยี่ห้อ IKA
T 18 Digital
Competitively priced dispersing instrument for volumes of 1 to 1,500 ml (H2O).
A wide speed range allows you to work at high circumferential speeds.
- Electronic speed control
- Electronic overload protection
- Quick release button for dispersing element
- As standard, the T 18 is equipped with a connetion for a revolution counter
- Dispersing elements not included with delivery
| Technical Data | T 18 Digital |
| Volume range (H2O) | 1-1,500 ml |
| Max. viscosity | 5,000 mPas |
| Speed range (under load) | 3,000-25,000 rpm |
| Speed display | digital |
| Dimensions (W x D x H) | 87 x 100 x 271 mm |
| Weight | 2.5 kg |
| Protection class acc. to DIN EN 60529 | IP20 |
เครื่องผสมสารด้วยความเร็วสูง (Dispersers)
รุ่น T 25 Digital
ยี่ห้อ IKA
T 25 Digital
High-performance dispersing instrument for volumes of 1 to 2,000 ml (H2O).
The spectrum of applications ranges from homogenizing waste water samples to the use in laboratory reactors, to dispersion tasks under vacuum / pressure and sample preparation in medical diagnostics.
- Three types of shaft bearings
- Standard version with digital display and a connection for a revolution counter
- Rotor-Stator configurations have thirty years of proven, guaranteed comparability of
test results
- Wide range of dispersing elements (not included with delivery)
| Technical Data | T 25 digital |
| Volume range (H2O) | 1-2,000 ml |
| Max. viscosity | 5,000 mPas |
| Speed range (under load) | 3,400-24,000 rpm |
| Speed display | digital |
| Dimensions (W x D x H) | 65 x 80 x 240 mm |
| Weight | 1.6 kg |
| Protection class acc. to DIN EN 60529 | IP20 |
เครื่องปั่นสารให้เป็นเนื้อเดียวกัน (Disperser)
รุ่น ULTRA-TURRAX Tube Drive
ยี่ห้อ IKA

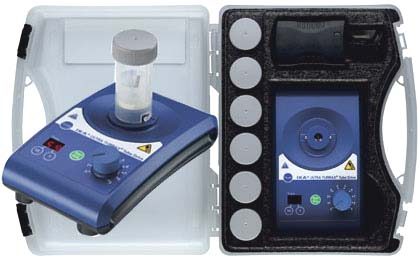

ULTRA-TURRAX Tube Drive
A unique, universal, single-use dispersing system with hermetically sealable sample vessels, Protection and security for; Infectious sample materials, toxic substances, high-odour substances.
New : Gamma-sterilised tubes
New : Tubes with piercable membrane covers
New : Tubes with 50 ml volume
- Disperse, stir and grind using a single drive unit
- No possibility of cross-contamination
- Hermetically sealable disposable sample tubes
- High level of user safety
- Suitable for individual use and use in series
- Anti-locking function
- Increases safety due to low voltage (24V)
- Chemical -resistant plastic
- Simple and safe disposal
- Worldwide service guaranteed by IKA
- Patented
| Technical data | ULTRA-TURRAX Tube Drive |
| Volume 20 ml Tube | 2-20 ml |
| Volume 50 ml Tube | 15-50 ml |
| Speed range, infinitely adjustable | 300-6,000 rpm |
| Timer 1-59 s | 300-6,000 rpm |
| Timer 1-29 min | 300-4,000 rpm |
| Display timer | digital |
| Dimensions (W x D x H) | 100 x 160 x 40 mm |
| Weight | 0.75 kg |
| Protection class acc. to DIN EN 60529 | IP 20 |
เครื่องเขย่าสาร (Orbital Shakers)
รุ่น MS 3 digital
ยี่ห้อ IKA
MS 3 digital
| Technical Data | MS 3 digital |
| Shaking movement | orbital |
| Orbital diameter | 4.5 mm |
| Max. permitted shaking weight (incl. attachment) | 0.5 kg |
| Speed range | 0-3,000 rpm |
| Speed display | scale |
| Timer | yes |
| Time setting | 1s-999min |
| Operating mode | timer and continous mode, touch operation |
| Dimensions (W x D X H) | 148 x 205 x 63 mm |
| Weight | 2.9 kg |
| Protection class acc. to DIN EN 60529 | IP 21 |
เครื่องเขย่าสาร (Orbital Shakers)
รุ่น KS 130 control
ยี่ห้อ IKA
KS 130 control
- A digital display allows for reading the speed, timer function and operation modes
- Electronic time switching clock : 0-9 h 59 min or continuous operation
- With integrated end point positioning (for automated robot-controlled sampling)
- All functions can be controlled and documented with labworldsoft
- Special version with reverse rotation direction available upon request
| Technical Data | KS 130 control |
| Shaking movement | orbital |
| Orbital diameter | 4 mm |
| Max. shaking weigh (with attachment) | 2 kg |
| Speed range | 80-800 rpm |
| Speed display | digital |
| Timer | 0-9 h 59 min or continuous operation |
| Dimensions (W x D x H) | 270 x 316 x 98 mm |
| Weight | 9.8 kg |
| Interface | RS 232 / analog |
| Protection class acc. to DIN EN 60529 | IP 21 |
เครื่องเขย่าสารแบบควบคุมอุณหภูมิ (Incubator Shakers)
รุ่น KS 4000 i control , รุ่น KS 4000 ic control
ยี่ห้อ IKA

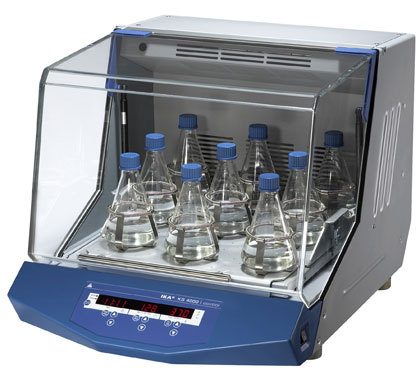

Incubator Shakers
KS 4000 i Control
KS 4000 ic Control with built in cooler
Incubator shaker with innovative design allowing unattended operation in a temperature controlled environment.
KS 4000 ic Control with built in cooling coil for connection to an external cooling unit e.g. KV 600.
- Large LED display for speed and tim settings
- Controls with antimicrobial coating for reduction of bacteria
- Integrated PID temperature control (use of two PT 1000 temperature sensors)
- Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60
- Electronic temperature and speed control
- Electronic timer switch : 0-999 h (set by the minute or by the hour)
- Unit wwitchers off automatically if unstable
- Unit stops automatically when hood is lifted
- Collecting tray with drain hose on rear of unit
- Simple operation
- All functions can be controlled and documented using the labworldsoft software
- Attachments not included - please order accessories as needed
| Technical Data | |
| Shaking movement | Oribital |
| Max. shaker weight (with attachment) | 20 kg |
| Speed range | 10-500 rpm |
| Temperture range | RT +5oC to 80oC |
| Temperature stabillity (200 ml H2O at target T= 37oC, RT 25oC) | 0.1k |
| Timer switch (select minutes/hours) | 0-999 h |
| Speed, time and temperature display | Digital |
| Dimensions (W x H x D) | 580 x 750 x 525 mm |
| Protection class acc. to DIN EN 60529 | IP 30 |
| Interface | RS 232 |
| Additional cooling function for KS 4000 ic Control | |
| Cooling coil | built in |
| Temperature range at flow temperature (3oC) KV 600 | RT - 10oC to 80oC |
| Cooling conncetion for hose | Ø 10 mm |
| Adapter nipple for hose connection | Yes |
